1kva Single Phase Pad Mounted Transformers 13.2kv To 120v Oil Filled Distribution Transformer Pad Mount ANSI IEEE
In power distribution systems, not all scenarios require large-capacity transformers. For scenarios such as small commercial premises, standalone buildings, and remote power consumption nodes that demand precise matching of power needs, the Winley 1kVA Liquid-Filled Pad-Mounted Transformer stands out as an ideal choice that balances high efficiency, safety, and adaptability, thanks to its core advantage of "small size yet excellent performance".
The single-phase pad-mounted transformers manufactured by WINLEY not only fully comply with but also exceed ANSI, DOE, IEEE, and CSA standards. With UL/cUL certifications, these transformers stand out for their compact size, lightweight design, low noise operation, minimal power losses, as well as high safety and reliability. They are ideally suited for a wide range of applications, including residential communities, commercial centers, hospitals, parks, and schools.
Single Phase Pad Mounted Transformer Main data
| Transformer Type: |
Pad Mounted, Compartmental-Type II |
| Transformer Configuration: |
Liquid Filled Pad Mounted |
| Transformer Feed Type: |
Loop Feed |
| Phase: |
Single Phase |
| Capacity: |
1 KVA |
| Vector Group: |
II6 |
| Primary Voltage: |
13200GrdY/7620 |
| Secondary Voltage: |
240/120V (L-N-L) |
| Frequency: |
60 Hz |
| Temperature Rise: |
65°C |
| Insulation Rating: |
Class E Insulation - 120°C, 248°F |
| Cooling Class: |
ONAN; Self-Cooled |
| Efficiency Standard(s): |
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| Winding Material: |
Aluminum |
| Ambient Temperature Rating: |
40°C |

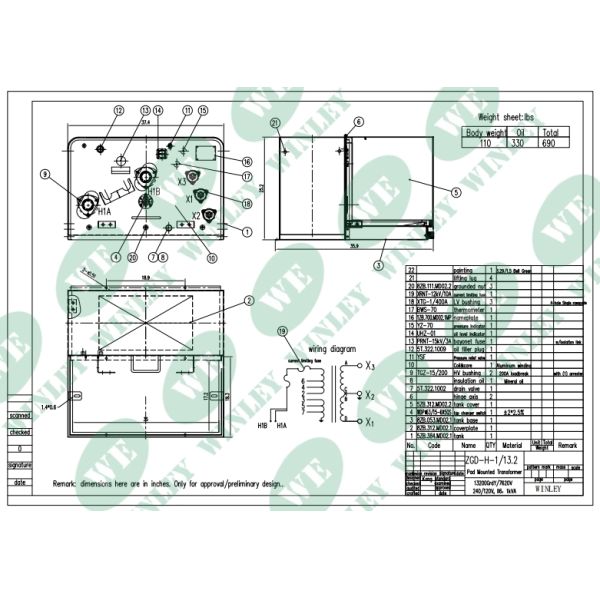

Single Phase Pad Mounted Transformer Drawing
Single Phase Pad Mounted Transformer Standard Features
- HV Bushings*2
- LV Bushings*3
- Tap Changer
- Bayonet Fuse
- ELSP Fuse*1ELSP
- Oil Level Gauge
- Pressure Relief Valve
- Thermomter
- Fill Plug
- Drain Valve
- Ground Strap Copper
- Grounding Spade Terminal*2
Specification
| Single phase Pad mounted Transformer Specification |
| Rating |
High voltage(kV) |
No Load Loss |
On load Loss |
Height |
Depth |
Width |
Oil Weight(kg) |
Total Weight(kg) |
| (kVA) |
(mm) |
(mm) |
(mm) |
| 15 kVA |
34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others |
50 |
195 |
840 |
740 |
610 |
45 |
294 |
| 25 kVA |
80 |
290 |
840 |
740 |
610 |
68 |
362 |
| 37.5 kVA |
106 |
360 |
840 |
760 |
610 |
75 |
476 |
| 50 kVA |
135 |
500 |
840 |
810 |
610 |
93 |
553 |
| 75 kVA |
190 |
650 |
840 |
860 |
610 |
132 |
672 |
| 100 kVA |
280 |
1010 |
910 |
1200 |
965 |
230 |
714 |
| 167 kVA |
435 |
1530 |
1000 |
1200 |
965 |
265 |
913 |
| 250 kVA |
550 |
2230 |
1250 |
1300 |
1430 |
325 |
1106 |

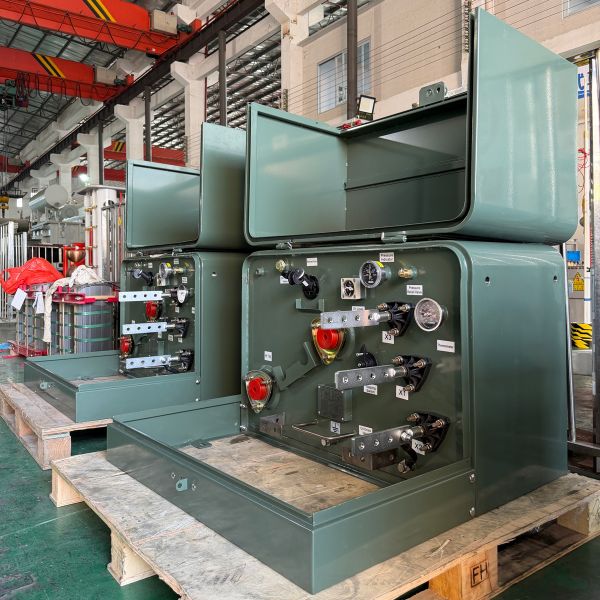

Production process

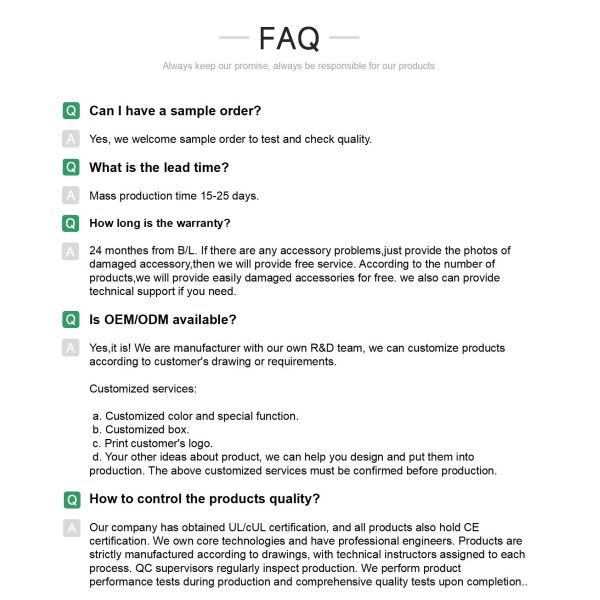

FAQ
